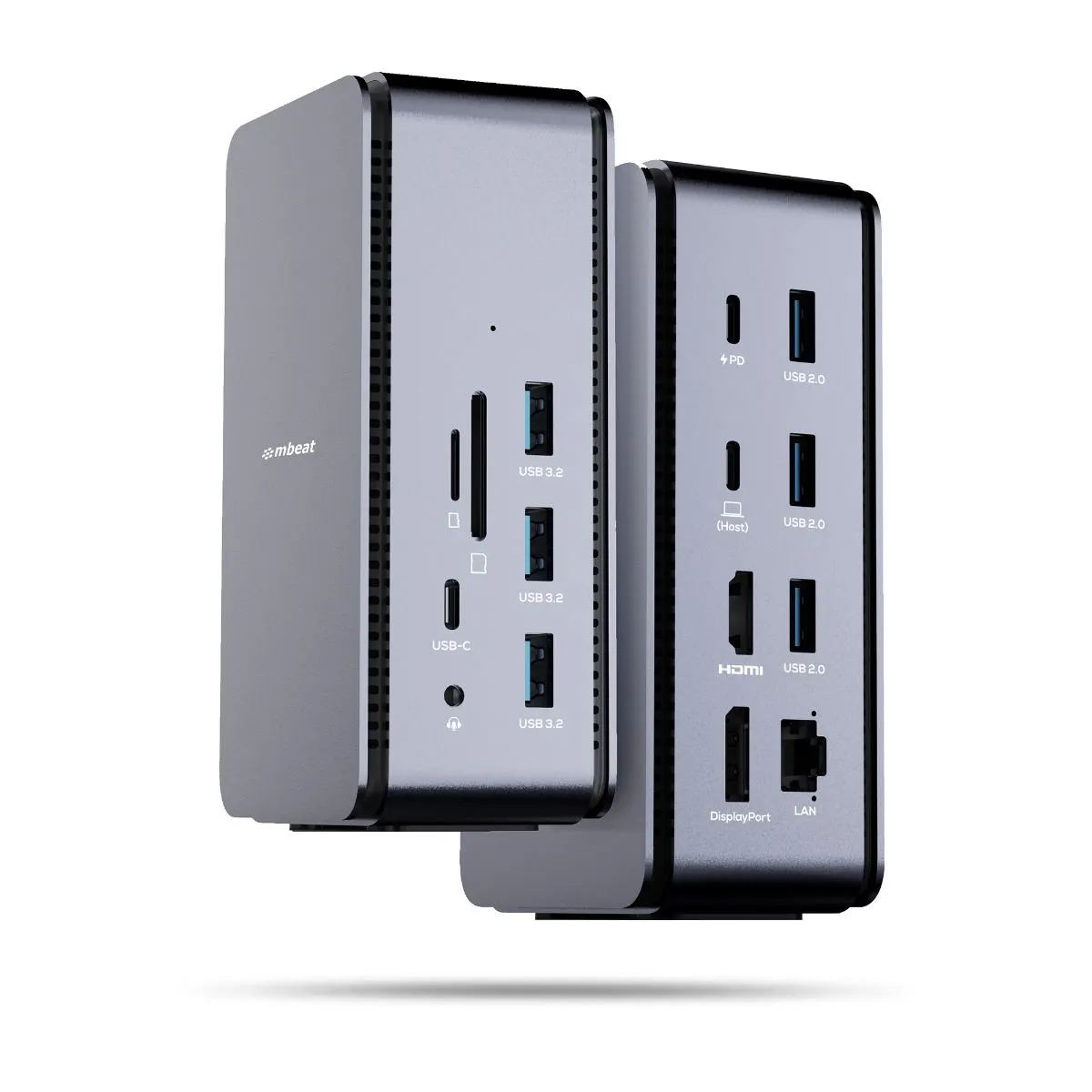

mbeat 14-in-1 USB4 Docking Station with 8K Video, 40Gbps Data - Space Grey
Features:
USB4 Ultimate Utility
Premiere 14-port all-in-one USB4 docking station with up to 40Gbps bandwidth; connect dual UHD displays, up to 7 USB devices, Gigabit LAN, SD/MicroSD 3.0 cards, Hi-Res audio with 100W PD Pass-through.

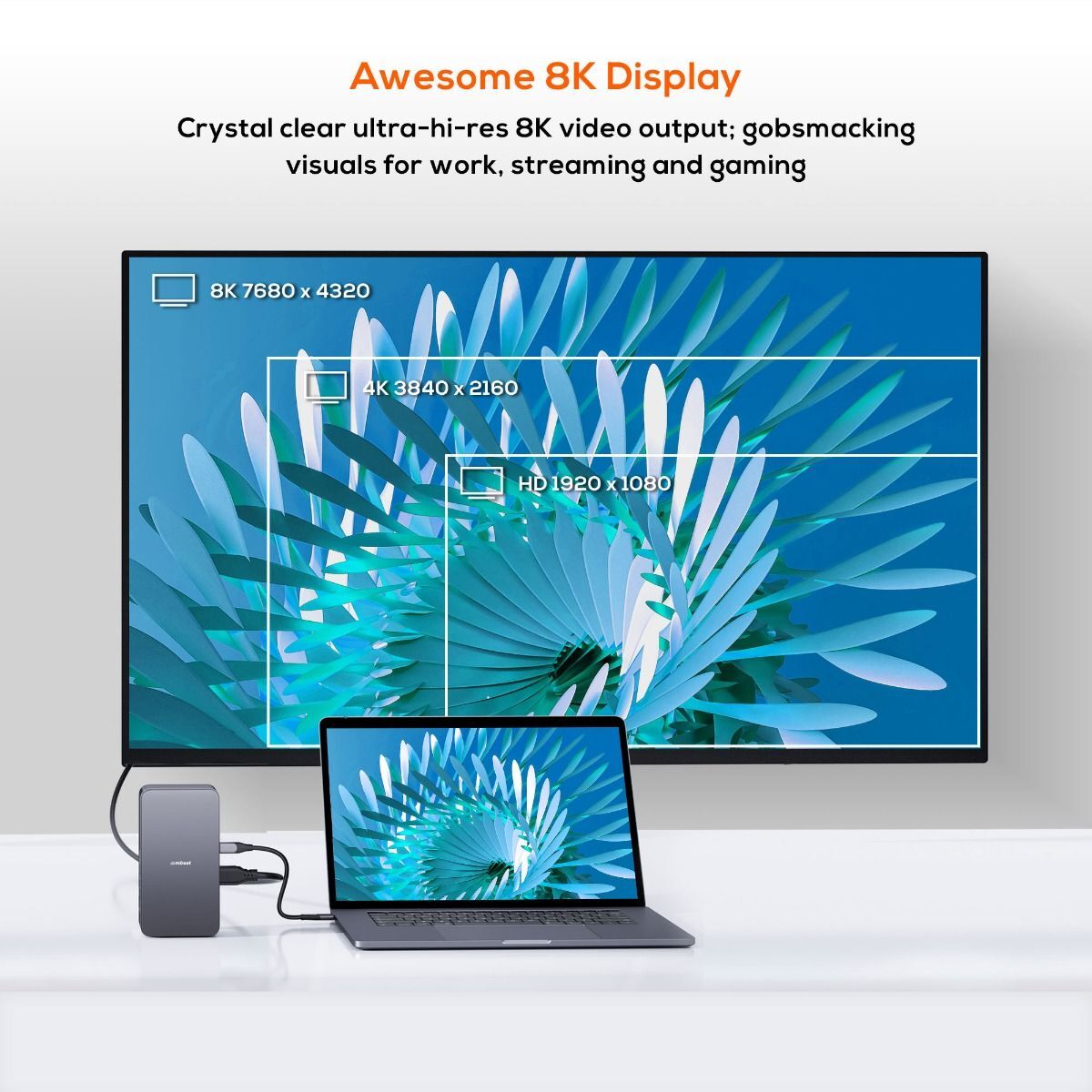

8K HD Video Performance
Built-in HDMI 2.1 and DisplayPort 1.4, achieve crystal clear 8K resolution with compatible devices*. Easily achieve 4K dual screen; Window supports MST or SST Mode 4K@60Hz*; Mac OS supports SST Mode 4K@60Hz. (*USB-C host must support DisplayPort 1.4)
High-Speed Data Charge

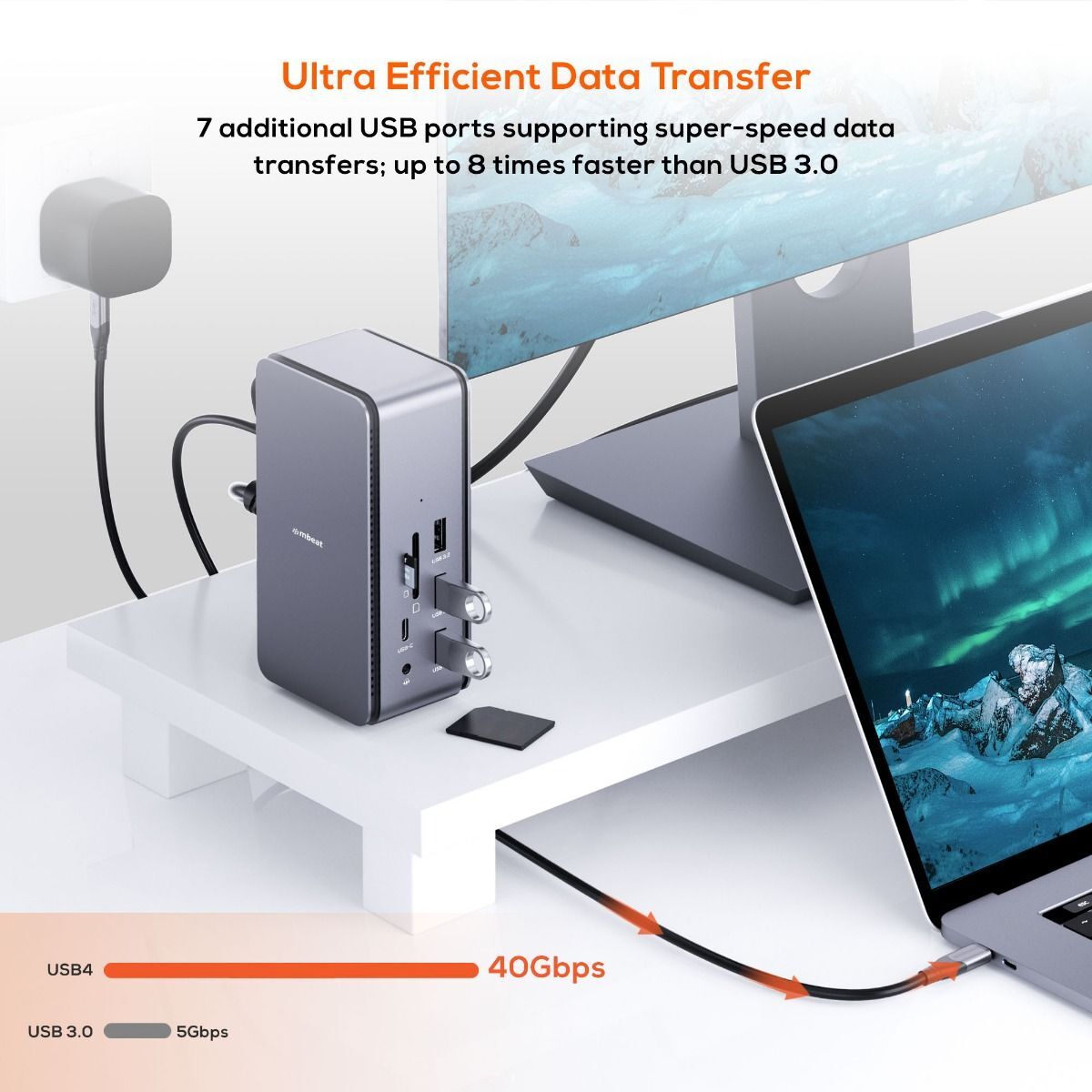

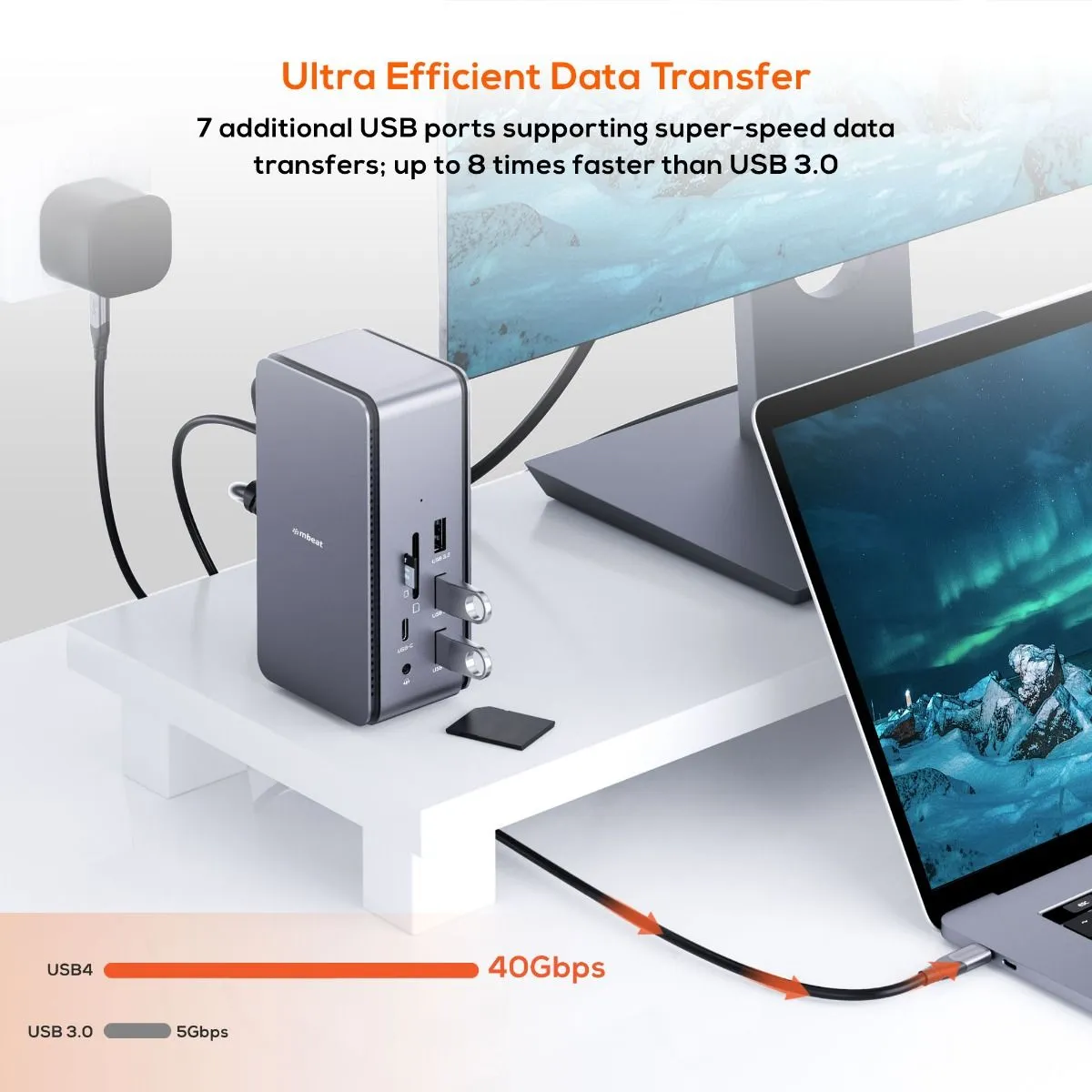

Massive 7 port USB expansion with transfer rates up to 10Gbps (USB3.2/Type-C), supports BC1.2 fast charging up to 7.5W, and legacy USB2.0 ports for keyboard/mice/other peripherals.
Extensively Functional
Featuring dual display via HDMI 2.1 and DP1.4, 100W PD pass-through, RJ45 1000Mbps, SD/MicroSD reader, 3xUSB3.2 with BC1.2 fast charge, 3xUSB2.0, 1xType-C and Hi-Res 3.5 AUX.
Specifications:

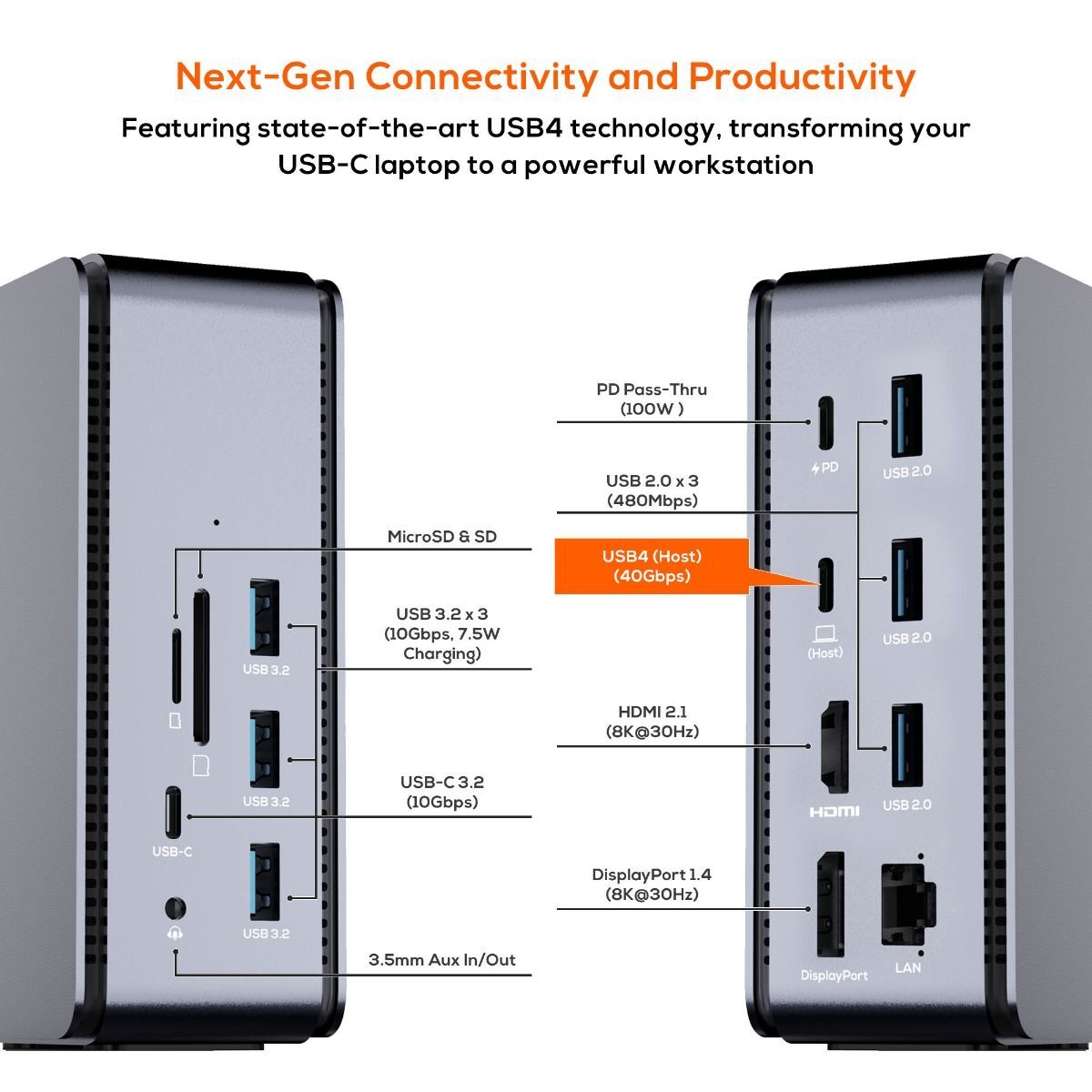

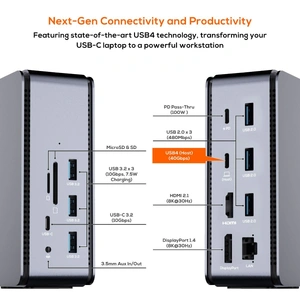

Upstream Port:
- USB4 (Type-C form): 40Gbps 1
Downstream Port:
- USB Type-C 3.2: 10Gbps 1
- USB 3.2 Port: 10Gbps 3, Supports BC1.2 Charing up to 7.5W

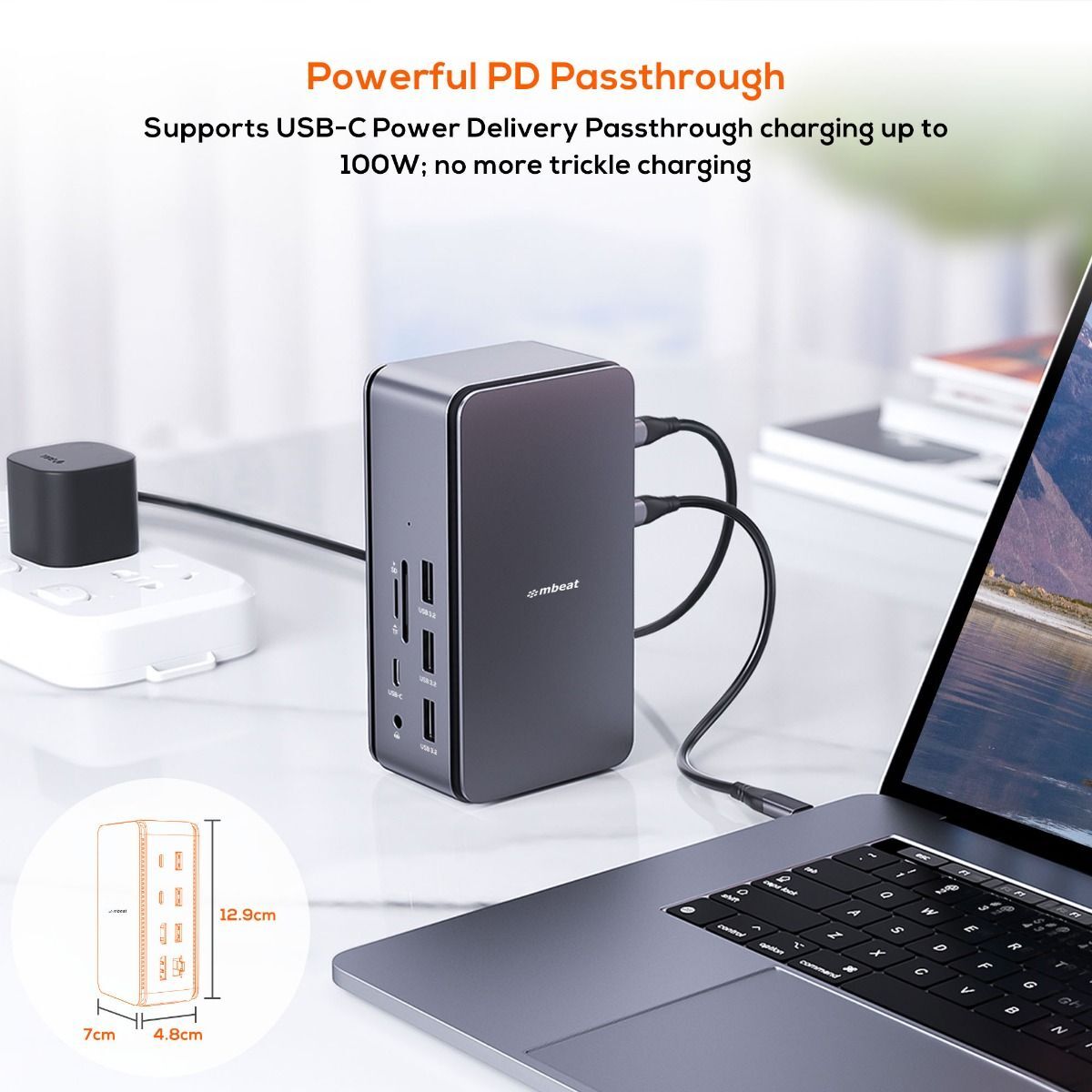

- USB Type-C PD: 100W Pass Through 1
- USB 2.0 Port: 480Mbps 3
- HDMI 2.1: 8K@30Hz 1
- Display Port 1.4: 8K@30Hz 1

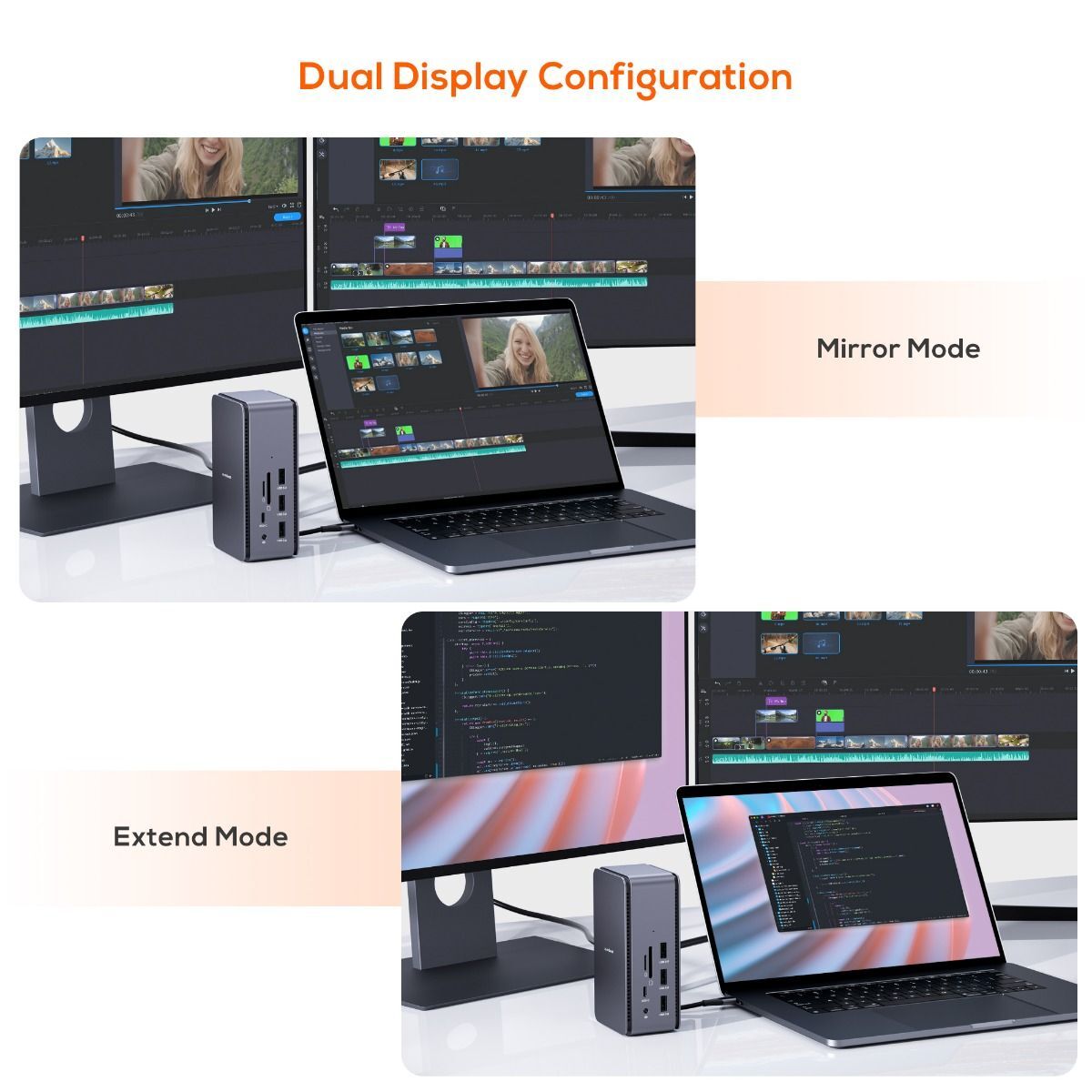

- Display Configuration: Window supports MST or SST Mode 4K@60Hz; Mac OS supports SST Mode 4K@60Hz

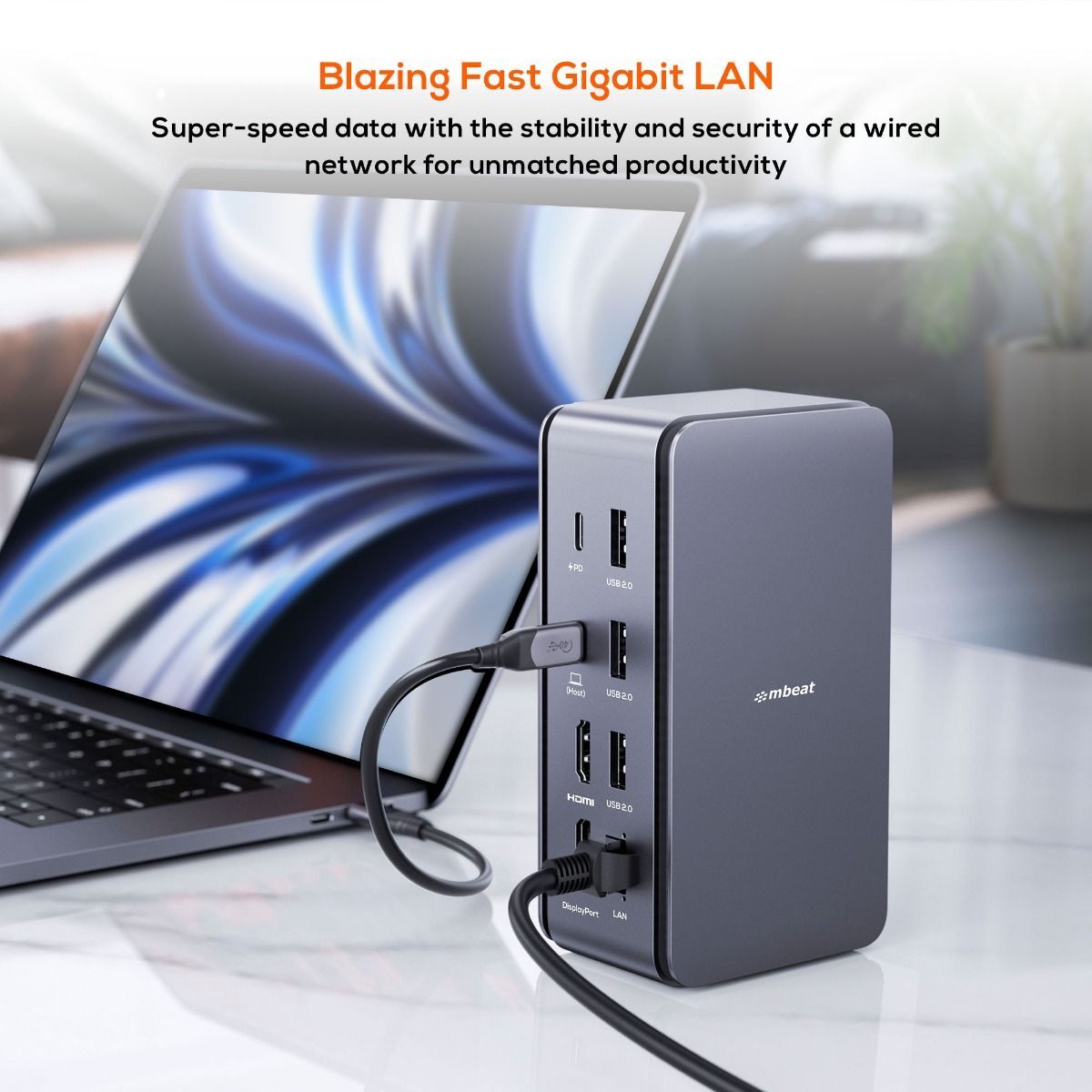

- RJ45 Port: 10/100/1000Mbps 1
- SD Card Reader: SD 3.0 1, compatible with SDXC, SDHC and SD
- MicroSD Card Reader: MicroSD 3.0 1, compatible with MicroSDXC, MicroSDHC and MicroSD
- Audio: 3.5mm Aux 1, SPDIF-OUT supports 16/20/24-bit format and 44.1/48/88.2/96kHz Sample Rate
- USB 4.0 Cable: 80cm 1
Compatibility and Limitation:
- USB4 is backward compatible with all USB standards including Thunderbolt 3 and 4, whereas the Thunderbolt 3 or 4 dock is only compatible with Thunderbolt devices.
- Product is compatible with Windows 7, 8, 10, 11 and Mac OS 10.12
- Windows OS supports MST, Mac OS only supports SST in USB-C Display Alt mode, MacBook (2020) with M1 CPU currently only supports 1 external monitor display.
- Product does not include USB-C power supply.
Product and Package:
- Product Dimension: 12.9 6.95 4.8cm
- Product Weight: 309g
- Package Dimension: 17.3 15 5.6cm
- Package Weight: 487g
Package Contents:
- USB4 Docking Station
- 80cm USB 4.0 Cable
- Instruction Manual
- Product Registration Card
